Spring Security启动流程与架构设计分析
在讲解基于表单认证等的认证流程之前，本人觉得有必要先讲解一下Spring Security的系统架构图，以及各种过滤器链的启动流程，这样子后面在讲解认证流程的时候，能更好理解一些。
架构设计
官方参照文档：https://docs.spring.io/spring-security/reference/servlet/architecture.html

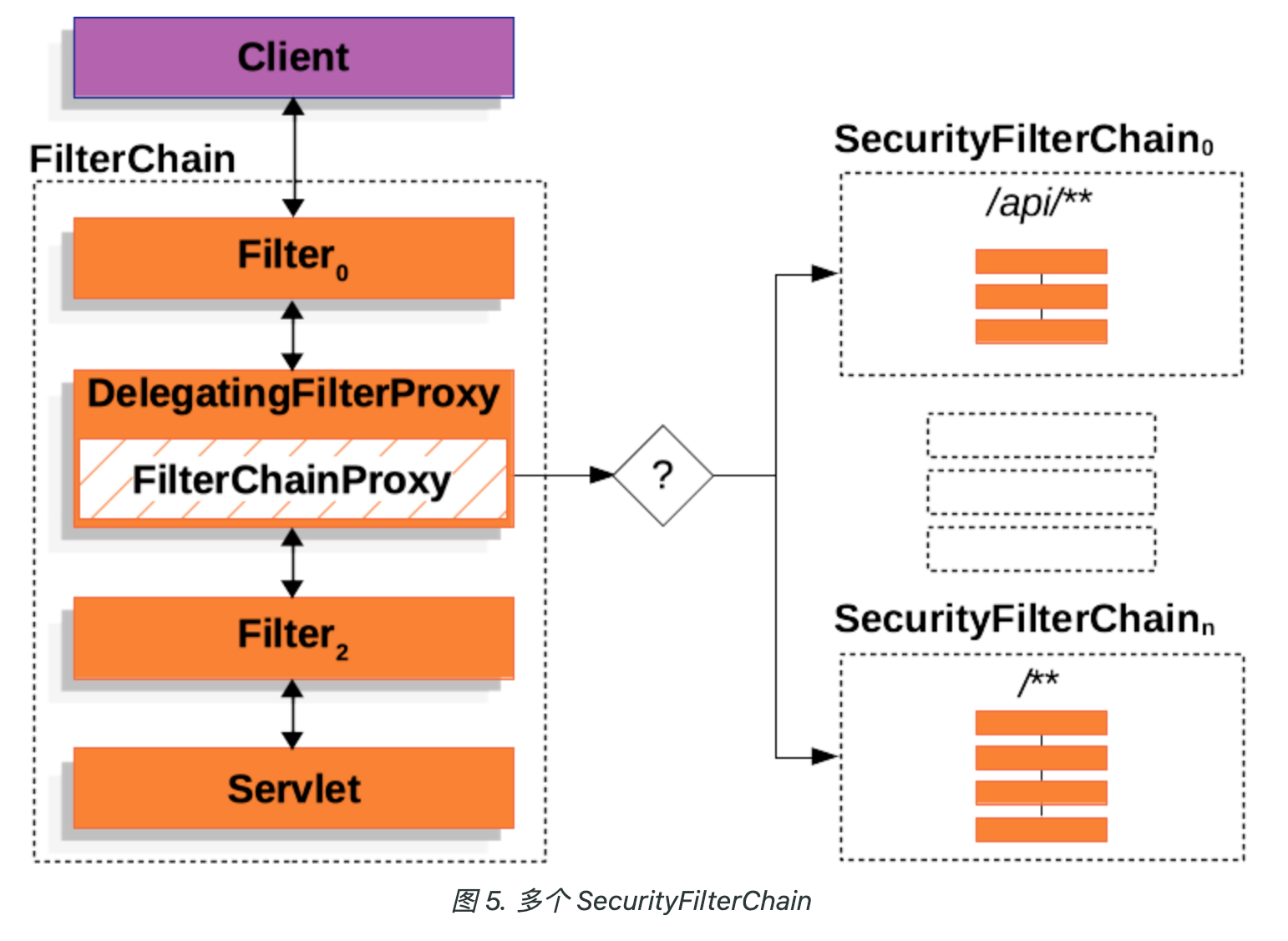

下面对最终的架构图结合Spring Security的源代码进行详细讲解。
FilterChain
Spring Security是基于Servlet的过滤器来实现的。当客户端向服务端发送请求的时候，会经过Servlet的一个个过滤器，就是上图的FilterChain。想要了解Servlet的过滤器，可以参照 https://juejin.cn/post/6878948441335660558 。
在Spring Security初始化的过程中，会向Servlet中注册一个DelegatingFilterProxy过滤器，由该过滤器处理请求。具体注册的位置在AbstractSecurityWebApplicationInitializer
public abstract class AbstractSecurityWebApplicationInitializer
implements WebApplicationInitializer {
@Override
public final void onStartup(ServletContext servletContext) {
...
insertSpringSecurityFilterChain(servletContext);
...
}
private void insertSpringSecurityFilterChain(ServletContext servletContext) {
// springSecurityFilterChain
String filterName = DEFAULT_FILTER_NAME;
DelegatingFilterProxy springSecurityFilterChain = new DelegatingFilterProxy(filterName);
String contextAttribute = getWebApplicationContextAttribute();
if (contextAttribute != null) {
springSecurityFilterChain.setContextAttribute(contextAttribute);
}
// 注册DelegatingFilterProxy
registerFilter(servletContext, true, filterName, springSecurityFilterChain);
}
}AbstractSecurityWebApplicationInitializer集成了WebApplicationInitializer接口，在服务器启动的时候，会检测WebApplicationInitializer接口的实现类，并且自动调用onStartup方法来配置servletContext，这里向Servlet注册了一个DelegatingFilterProxy拦截器。注意上面的FilterName为springSecurityFilterChain，下文会用到。
DelegatingFilterProxy
由于Servlet在调用拦截器的时候，会自动调用拦截器的doFilter方法，我们直接看DelegatingFilterProxy的doFilter的doFilter方法。
public class DelegatingFilterProxy extends GenericFilterBean {
public void doFilter(ServletRequest request, ServletResponse response, FilterChain filterChain) throws ServletException, IOException {
Filter delegateToUse = this.delegate;
if (delegateToUse == null) {
this.delegateLock.lock();
try {
delegateToUse = this.delegate;
if (delegateToUse == null) {
WebApplicationContext wac = this.findWebApplicationContext();
if (wac == null) {
throw new IllegalStateException("No WebApplicationContext found: no ContextLoaderListener or DispatcherServlet registered?");
}
// 查找代理的拦截器
delegateToUse = this.initDelegate(wac);
}
this.delegate = delegateToUse;
} finally {
this.delegateLock.unlock();
}
}
// 调用代理的拦截器
this.invokeDelegate(delegateToUse, request, response, filterChain);
}
protected Filter initDelegate(WebApplicationContext wac) throws ServletException {
// 这里的targetBeanName就是上文提到的springSecurityFilterChain
String targetBeanName = this.getTargetBeanName();
Assert.state(targetBeanName != null, "No target bean name set");
// 通过WebApplicationContext的getBean获取拦截器
Filter delegate = (Filter)wac.getBean(targetBeanName, Filter.class);
if (this.isTargetFilterLifecycle()) {
delegate.init(this.getFilterConfig());
}
return delegate;
}
// 执行代理拦截器的doFilter方法
protected void invokeDelegate(Filter delegate, ServletRequest request, ServletResponse response, FilterChain filterChain) throws ServletException, IOException {
delegate.doFilter(request, response, filterChain);
}
}具体调用的拦截器是什么呢，就是上面架构图的FilterChainProxy。
FilterChainProxy
下面我们看看FilterChainProxy是什么时候注册到Spring中，成为Spring的一个Bean的。
打开之前Spring Boot为Spring Security自动配置的类SecurityAutoConfiguration，可以看到导入了SpringBootWebSecurityConfiguration类
@AutoConfiguration(before = UserDetailsServiceAutoConfiguration.class)
@ConditionalOnClass(DefaultAuthenticationEventPublisher.class)
@EnableConfigurationProperties(SecurityProperties.class)
@Import({ SpringBootWebSecurityConfiguration.class, SecurityDataConfiguration.class })
public class SecurityAutoConfiguration {
...
}打开SpringBootWebSecurityConfiguration这个类，可以看到WebSecurityEnablerConfiguration上面实现了@EnableWebSecurity注解
@Configuration(proxyBeanMethods = false)
@ConditionalOnWebApplication(type = Type.SERVLET)
class SpringBootWebSecurityConfiguration {
@Configuration(proxyBeanMethods = false)
@ConditionalOnMissingBean(name = BeanIds.SPRING_SECURITY_FILTER_CHAIN)
@ConditionalOnClass(EnableWebSecurity.class)
@EnableWebSecurity
static class WebSecurityEnablerConfiguration {
}
}继续看@EnableWebSecurity注解实现，可以看到导入了WebSecurityConfiguration这个类
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
@Import({ WebSecurityConfiguration.class, SpringWebMvcImportSelector.class, OAuth2ImportSelector.class,
HttpSecurityConfiguration.class, ObservationImportSelector.class })
@EnableGlobalAuthentication
public @interface EnableWebSecurity {
boolean debug() default false;
}点进WebSecurityConfiguration这个类，可以看到这个类声明了一个Bean，Bean的名字就是springSecurityFilterChain。
@Configuration(proxyBeanMethods = false)
public class WebSecurityConfiguration implements ImportAware, BeanClassLoaderAware {
@Bean(name = AbstractSecurityWebApplicationInitializer.DEFAULT_FILTER_NAME)
public Filter springSecurityFilterChain() throws Exception {
boolean hasFilterChain = !this.securityFilterChains.isEmpty();
// 如果没有过滤器链，默认构造一个，可以看到这里注册的httpSecurity跟自动配置的是同一个配置
if (!hasFilterChain) {
this.webSecurity.addSecurityFilterChainBuilder(() -> {
this.httpSecurity.authorizeHttpRequests((authorize) -> authorize.anyRequest().authenticated());
this.httpSecurity.formLogin(Customizer.withDefaults());
this.httpSecurity.httpBasic(Customizer.withDefaults());
return this.httpSecurity.build();
});
}
for (SecurityFilterChain securityFilterChain : this.securityFilterChains) {
this.webSecurity.addSecurityFilterChainBuilder(() -> securityFilterChain);
}
for (WebSecurityCustomizer customizer : this.webSecurityCustomizers) {
customizer.customize(this.webSecurity);
}
// 构建SecurityFilterChain
return this.webSecurity.build();
}
}this.webSecurity.build()这里就是用于生成上面架构图右边的所有SecurityFilterChain。webSecurity也是在WebSecurityConfiguration里面进行配置的
@Autowired(required = false)
public void setFilterChainProxySecurityConfigurer(ObjectPostProcessor<Object> objectPostProcessor,
ConfigurableListableBeanFactory beanFactory) throws Exception {
// this.webSecurity赋值
this.webSecurity = objectPostProcessor.postProcess(new WebSecurity(objectPostProcessor));
if (this.debugEnabled != null) {
this.webSecurity.debug(this.debugEnabled);
}
// 扫描获取SecurityConfigurer列表
List<SecurityConfigurer<Filter, WebSecurity>> webSecurityConfigurers = new AutowiredWebSecurityConfigurersIgnoreParents(
beanFactory)
.getWebSecurityConfigurers();
// 对SecurityConfigurer进行排序
webSecurityConfigurers.sort(AnnotationAwareOrderComparator.INSTANCE);
Integer previousOrder = null;
Object previousConfig = null;
for (SecurityConfigurer<Filter, WebSecurity> config : webSecurityConfigurers) {
Integer order = AnnotationAwareOrderComparator.lookupOrder(config);
if (previousOrder != null && previousOrder.equals(order)) {
throw new IllegalStateException("@Order on WebSecurityConfigurers must be unique. Order of " + order
+ " was already used on " + previousConfig + ", so it cannot be used on " + config + " too.");
}
previousOrder = order;
previousConfig = config;
}
// 把所有的webSecurityConfigurer放入webSecurity
for (SecurityConfigurer<Filter, WebSecurity> webSecurityConfigurer : webSecurityConfigurers) {
this.webSecurity.apply(webSecurityConfigurer);
}
this.webSecurityConfigurers = webSecurityConfigurers;
}可以看到上面使用了@Autowired，是Spring自动导入的。Spring Security6的webSecurityConfigurers列表是空的，所以可以认为这里只是构建了一个webSecurity赋值给this.webSecurity。
在spring security5.7之前，Spring Security的配置方式是下面这种。WebSecurityConfigurerAdapter就是继承了SecurityConfigurer，后面不用了。
@Configuration
public class SecurityConfig extends WebSecurityConfigurerAdapter {
@Override
protected void configure(HttpSecurity http) throws Exception {
http.authorizeRequests()
.antMatchers("/vc.jpg").permitAll()
.anyRequest().authenticated()
.and()
.formLogin()
.loginPage("/mylogin.html")
.loginProcessingUrl("/doLogin")
.defaultSuccessUrl("/index.html")
.failureForwardUrl("/mylogin.html")
.usernameParameter("uname")
.passwordParameter("passwd")
.permitAll()
.and()
.csrf().disable();
}
}INFO
spring security抛弃WebSecurityConfigurerAdapter的说法如下：
- 简化安全配置，降低开发者的学习曲线。
- 使配置更加模块化、显式化和可维护。
- 让 Spring Security 更加贴合 Spring 的现代配置风格。
- 提供更灵活的 API，适应复杂的安全需求。
WebSecurity
由于FilterChainProxy是通过WebSecurity#build方法构建的，所以我们来看看这个方法做了什么事情。

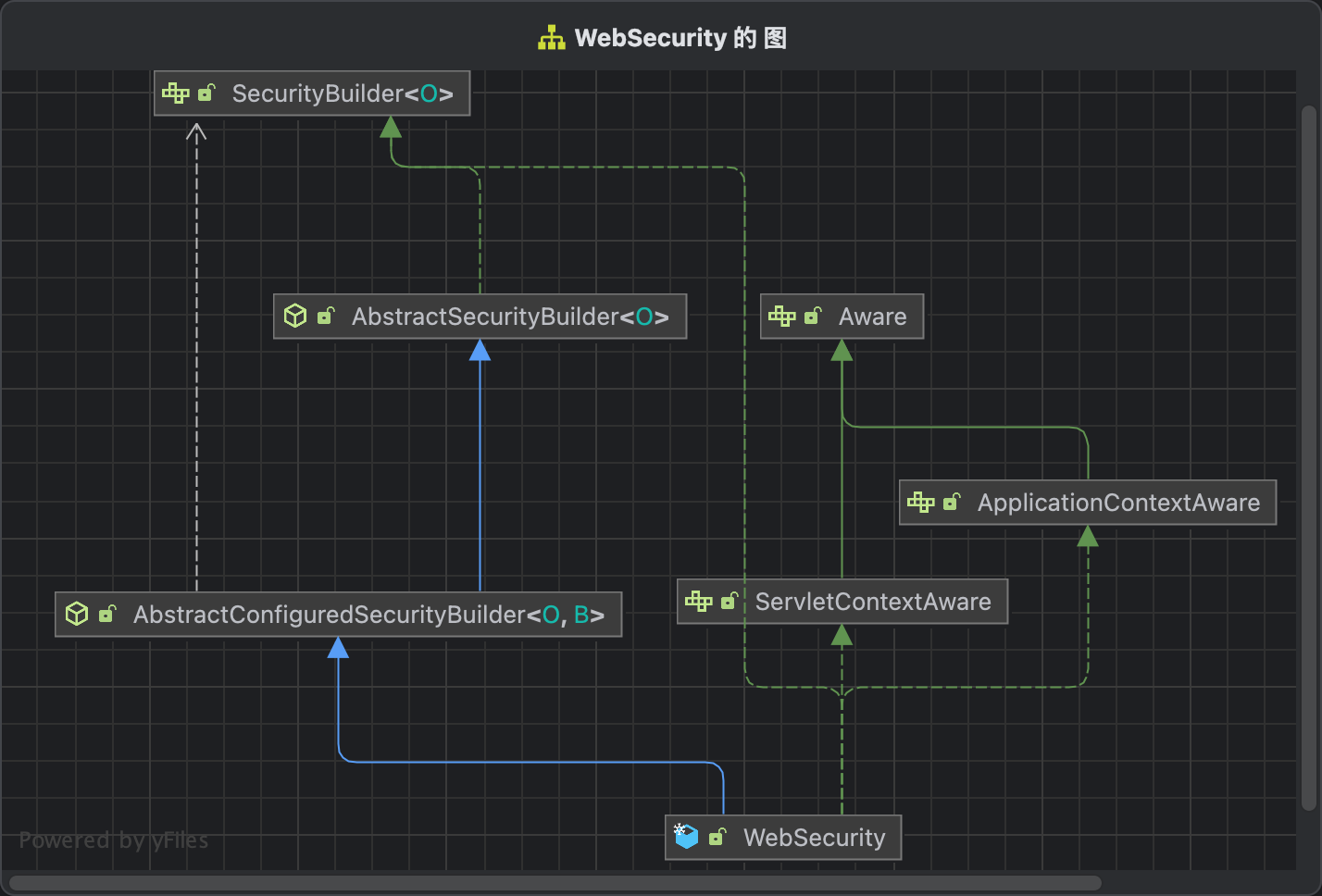

首先我们看看WebSecurity的类继承图
当执行WebSecurity#build方法的时候，实际上执行的是AbstractSecurityBuilder#build方法，查看该方法
public abstract class AbstractSecurityBuilder<O> implements SecurityBuilder<O> {
private AtomicBoolean building = new AtomicBoolean();
@Override
public final O build() throws Exception {
// 防止重复初始化
if (this.building.compareAndSet(false, true)) {
this.object = doBuild();
return this.object;
}
throw new AlreadyBuiltException("This object has already been built");
}
}调用了AbstractSecurityBuilder#doBuild方法，实际上执行的是AbstractConfiguredSecurityBuilder#doBuild方法，查看该方法
public abstract class AbstractConfiguredSecurityBuilder<O, B extends SecurityBuilder<O>>
extends AbstractSecurityBuilder<O> {
@Override
protected final O doBuild() throws Exception {
synchronized (this.configurers) {
this.buildState = BuildState.INITIALIZING;
beforeInit();
// 执行所有SecurityConfigurer的init方法
init();
this.buildState = BuildState.CONFIGURING;
beforeConfigure();
// 执行所有SecurityConfigurer的configure方法
configure();
this.buildState = BuildState.BUILDING;
// 核心方法performBuild
O result = performBuild();
this.buildState = BuildState.BUILT;
return result;
}
}
}调用了AbstractConfiguredSecurityBuilder#performBuild方法，实际上是调用Web Security#performBuild方法, 这个函数很长，我们只关注本节相关的内容
public final class WebSecurity extends AbstractConfiguredSecurityBuilder<Filter, WebSecurity>
implements SecurityBuilder<Filter>, ApplicationContextAware, ServletContextAware {
protected Filter performBuild() throws Exception {
...
// 获取securityFilterChain的个数
int chainSize = this.ignoredRequests.size() + this.securityFilterChainBuilders.size();
// 初始化securityFilterChains
List<SecurityFilterChain> securityFilterChains = new ArrayList<>(chainSize);
List<RequestMatcherEntry<List<WebInvocationPrivilegeEvaluator>>> requestMatcherPrivilegeEvaluatorsEntries = new ArrayList<>();
// 对于ignoredRequests的请求，构建一条过滤器，直接放行
for (RequestMatcher ignoredRequest : this.ignoredRequests) {
WebSecurity.this.logger.warn("You are asking Spring Security to ignore " + ignoredRequest
+ ". This is not recommended -- please use permitAll via HttpSecurity#authorizeHttpRequests instead.");
// 针对每个ignoredRequest，构造一个DefaultSecurityFilterChain，默认全部放行
SecurityFilterChain securityFilterChain = new DefaultSecurityFilterChain(ignoredRequest);
securityFilterChains.add(securityFilterChain);
requestMatcherPrivilegeEvaluatorsEntries
.add(getRequestMatcherPrivilegeEvaluatorsEntry(securityFilterChain));
}
DefaultSecurityFilterChain anyRequestFilterChain = null;
// 对于用户配置的过滤器链，SecurityConfig中配置的过滤器，构建过滤器
for (SecurityBuilder<? extends SecurityFilterChain> securityFilterChainBuilder : this.securityFilterChainBuilders) {
// 构建securityFilterChain
SecurityFilterChain securityFilterChain = securityFilterChainBuilder.build();
...
if (securityFilterChain instanceof DefaultSecurityFilterChain defaultSecurityFilterChain) {
if (defaultSecurityFilterChain.getRequestMatcher() instanceof AnyRequestMatcher) {
anyRequestFilterChain = defaultSecurityFilterChain;
}
}
// 加入到securityFilterChains
securityFilterChains.add(securityFilterChain);
requestMatcherPrivilegeEvaluatorsEntries
.add(getRequestMatcherPrivilegeEvaluatorsEntry(securityFilterChain));
}
if (this.privilegeEvaluator == null) {
this.privilegeEvaluator = new RequestMatcherDelegatingWebInvocationPrivilegeEvaluator(
requestMatcherPrivilegeEvaluatorsEntries);
}
// 构建filterChainProxy
FilterChainProxy filterChainProxy = new FilterChainProxy(securityFilterChains);
if (this.httpFirewall != null) {
filterChainProxy.setFirewall(this.httpFirewall);
}
if (this.requestRejectedHandler != null) {
filterChainProxy.setRequestRejectedHandler(this.requestRejectedHandler);
}
else if (!this.observationRegistry.isNoop()) {
CompositeRequestRejectedHandler requestRejectedHandler = new CompositeRequestRejectedHandler(
new ObservationMarkingRequestRejectedHandler(this.observationRegistry),
new HttpStatusRequestRejectedHandler());
filterChainProxy.setRequestRejectedHandler(requestRejectedHandler);
}
filterChainProxy.setFilterChainDecorator(getFilterChainDecorator());
filterChainProxy.afterPropertiesSet();
Filter result = filterChainProxy;
...
// 返回filterChainProxy
return result;
}
}到现在为止，我们只要关心this.ignoredRequests跟this.securityFilterChainBuilders是怎么初始化的就可以了。
SecurityFilterChain
让我重新回看WebSecurityConfiguration中的springSecurityFilterChain这个Bean
@Configuration(proxyBeanMethods = false)
public class WebSecurityConfiguration implements ImportAware, BeanClassLoaderAware {
@Bean(name = AbstractSecurityWebApplicationInitializer.DEFAULT_FILTER_NAME)
public Filter springSecurityFilterChain() throws Exception {
...
// 遍历SecurityFilterChain，往WebSecurity中加入securityFilterChainBuilder
for (SecurityFilterChain securityFilterChain : this.securityFilterChains) {
this.webSecurity.addSecurityFilterChainBuilder(() -> securityFilterChain);
}
// 构建SecurityFilterChain
return this.webSecurity.build();
}
}可以看到securityFilterChainBuilder#build返回的是一个SecurityFilterChain对象，这个对象是从哪里来的呢，找到WebSecurityConfiguration的securityFilterChains赋值的地方
@Configuration(proxyBeanMethods = false)
public class WebSecurityConfiguration implements ImportAware, BeanClassLoaderAware {
// 通过Autowired注入securityFilterChains
@Autowired(required = false)
void setFilterChains(List<SecurityFilterChain> securityFilterChains) {
this.securityFilterChains = securityFilterChains;
}
}INFO
这里注入的securityFilterChains是List类型，Spring框架会自动按照@Order注解进行排序，所以这里得到的就是有优先级的securityFilterChains了
HttpSecurity
查看SecurityFilterChain接口代码, 可以看到一共有两个方法。
public interface SecurityFilterChain {
// 请求的request是否可以用该过滤器
boolean matches(HttpServletRequest request);
// 获取该过滤器链中所有的过滤器
List<Filter> getFilters();
}SecurityFilterChain这个接口只有一个实现类，就是DefaultSecurityFilterChain，查看这个类的代码
public final class DefaultSecurityFilterChain implements SecurityFilterChain, BeanNameAware, BeanFactoryAware {
public DefaultSecurityFilterChain(RequestMatcher requestMatcher, List<Filter> filters) {
...
this.requestMatcher = requestMatcher;
this.filters = new ArrayList<>(filters);
}
}前面讲到WebSecurity#performBuild的时候，针对每个ignoredRequests构建了一个全部放行的DefaultSecurityFilterChain。
那么WebSecurityConfiguration中的securityFilterChains是在哪里赋值的，前面我们看到了是通过注入方式来获取的。重点来了，这个就是我们之前在SecurityConfig中构建出来的。
@Configuration
public class DefaultSecurityConfig {
@Bean
SecurityFilterChain defaultSecurityFilterChain(HttpSecurity http) throws Exception {
http.authorizeHttpRequests((requests) -> requests.anyRequest().authenticated());
http.formLogin(withDefaults());
http.httpBasic(withDefaults());
return http.build();
}

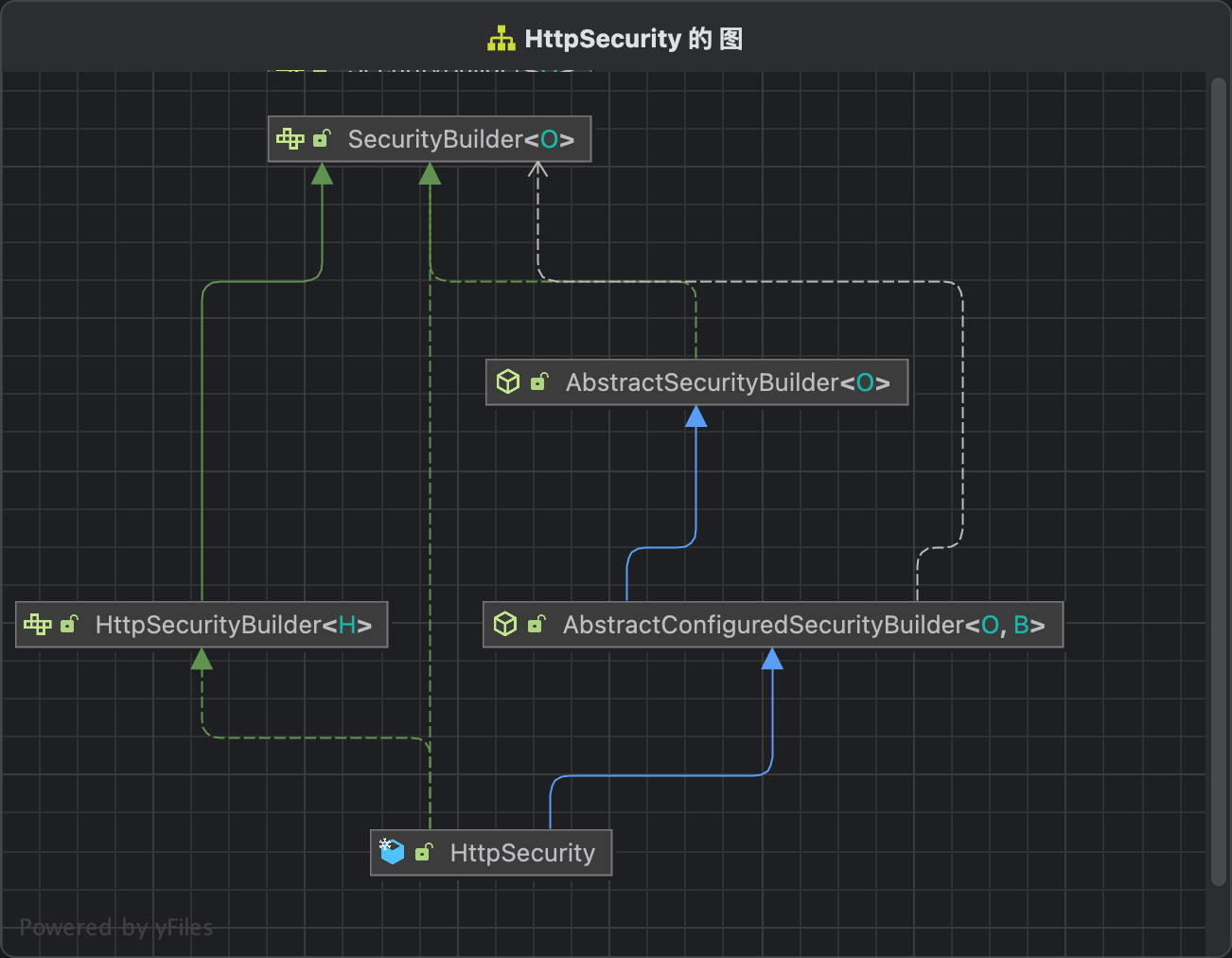

}上面的代码是不是很熟悉，defaultSecurityFilterChain返回的就是一个SecurityFilterChain。我们查看HttpSecurity的继承关系图。
可以看到HttpSecurity同样是继承AbstractConfiguredSecurityBuilder的，所以http.build()，我们直接看HttpSecurity#performBuild方法。
public final class HttpSecurity extends AbstractConfiguredSecurityBuilder<DefaultSecurityFilterChain, HttpSecurity>
implements SecurityBuilder<DefaultSecurityFilterChain>, HttpSecurityBuilder<HttpSecurity> {
@Override
protected DefaultSecurityFilterChain performBuild() {
ExpressionUrlAuthorizationConfigurer<?> expressionConfigurer = getConfigurer(
ExpressionUrlAuthorizationConfigurer.class);
...
// 针对过滤器链中的filter进行排序，根据@Order注解上的顺序
this.filters.sort(OrderComparator.INSTANCE);
List<Filter> sortedFilters = new ArrayList<>(this.filters.size());
// 排序后的过滤器链
for (Filter filter : this.filters) {
sortedFilters.add(((OrderedFilter) filter).filter);
}
// 构建DefaultSecurityFilterChain
return new DefaultSecurityFilterChain(this.requestMatcher, sortedFilters);
}
}到这里，整个过滤器链的初始化流程就很明了了。可以看到WebSecurity是负责将所有的HttpSecurity构建出来的DefaultSecurityFilterChain放入到FilterChainProxy中的。
IgnoredRequests
前面提到WebSecurity会针对所有的ignoredRequests构建一个默认放行的过滤器链。本节主要介绍ignoredRequests的构建流程
public final class WebSecurity extends AbstractConfiguredSecurityBuilder<Filter, WebSecurity>
implements SecurityBuilder<Filter>, ApplicationContextAware, ServletContextAware {
private final List<RequestMatcher> ignoredRequests = new ArrayList<>();
public class IgnoredRequestConfigurer extends AbstractRequestMatcherRegistry<IgnoredRequestConfigurer> {
@Override
protected IgnoredRequestConfigurer chainRequestMatchers(List<RequestMatcher> requestMatchers) {
WebSecurity.this.ignoredRequests.addAll(requestMatchers);
return this;
}
}
}IgnoredRequestConfigurer继承了AbstractRequestMatcherRegistry类，看看这个类跟IgnoredRequests相关的内容。
public abstract class AbstractRequestMatcherRegistry<C> {
public C requestMatchers(String... patterns) {
return requestMatchers(null, patterns);
}
public C requestMatchers(HttpMethod method, String... patterns) {
...
return requestMatchers(matchers.toArray(new RequestMatcher[0]));
}
public C requestMatchers(RequestMatcher... requestMatchers) {
Assert.state(!this.anyRequestConfigured, "Can't configure requestMatchers after anyRequest");
// 调用子类的chainRequestMatchers
return chainRequestMatchers(Arrays.asList(requestMatchers));
}
}可以看到是在IgnoredRequestConfigurer#chainRequestMatchers中进行添加的，我们看看IgnoredRequestConfigurer中的构建流程。
public final class WebSecurity extends AbstractConfiguredSecurityBuilder<Filter, WebSecurity>
implements SecurityBuilder<Filter>, ApplicationContextAware, ServletContextAware {
@Override
public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
this.ignoredRequestRegistry = new IgnoredRequestConfigurer(applicationContext);
}
}由于WebSecurity继承了ApplicationContextAware接口，所以在spring初始化过程中，会调用setApplicationContext，在这里初始化了一个IgnoredRequestConfigurer。
我们要怎么添加ignoredRequests呢？回头看WebSecurityConfiguration的springSecurityFilterChain类。
@Configuration(proxyBeanMethods = false)
public class WebSecurityConfiguration implements ImportAware, BeanClassLoaderAware {
@Bean(name = AbstractSecurityWebApplicationInitializer.DEFAULT_FILTER_NAME)
public Filter springSecurityFilterChain() throws Exception {
...
for (WebSecurityCustomizer customizer : this.webSecurityCustomizers) {
customizer.customize(this.webSecurity);
}
return this.webSecurity.build();
}
@Autowired(required = false)
void setWebSecurityCustomizers(List<WebSecurityCustomizer> webSecurityCustomizers) {
this.webSecurityCustomizers = webSecurityCustomizers;
}
}可以看到customizer.customize中传入了webSecurity参数，这样子我们可以调用WebSecurity的一些方法，而this.webSecurityCustomizers是通过注入进来的。
public final class WebSecurity extends AbstractConfiguredSecurityBuilder<Filter, WebSecurity>
implements SecurityBuilder<Filter>, ApplicationContextAware, ServletContextAware {
public IgnoredRequestConfigurer ignoring() {
return this.ignoredRequestRegistry;
}
}看看WebSecurity为IgnoredRequests提供了什么接口。IgnoredRequestConfigurer返回了ignoredRequestRegistry，就是上面的IgnoredRequestConfigurer。
所以如果我们如果需要定义某些链接不走spring security的过滤器链，可以实现一个WebSecurityCustomizer的bean就可以了。
@Configuration
public class SecurityConfig {
@Bean
public WebSecurityCustomizer webSecurityCustomizer() {
return (web) -> web.ignoring().requestMatchers("/images/**", "/js/**", "/webjars/**");
}
}上面的配置就是默认放行所有的静态资源。
Demo
在本章节的最后，我们基于上面的这个架构图创建一个配置吧，上面包含了两个SecurityFilterChain
- 一个过滤器链处理/api/，实现表单认证
- 一个过滤器链处理/**, 实现HttpBasic认证
首先我们定义几个接口。新建一个HelloController，代码如下所示
@RestController
public class HelloController {
@GetMapping("/hello")
public String hello() {
return "hello spring security";
}
@GetMapping("/api/hello")
public String apiHello() {
return "hello api spring security";
}
@GetMapping("/basic")
public String basic() {
return "hello basic spring security";
}
}然后定义SecurityConfig文件，具体代码如下所示
@Configuration
public class DefaultSecurityConfig {
@Bean
public WebSecurityCustomizer webSecurityCustomizer() {
return (web) -> web.ignoring().requestMatchers("/hello");
}
@Bean
SecurityFilterChain apiSecurityFilterChain(HttpSecurity http) throws Exception {
http.securityMatcher("/api/**", "/login", "/default-ui.css");
http.authorizeHttpRequests(requests -> requests.anyRequest().authenticated());
http.formLogin(Customizer.withDefaults());
return http.build();
}
@Bean
SecurityFilterChain basicSecurityFilterChain(HttpSecurity http) throws Exception {
http.authorizeHttpRequests(requests -> requests.anyRequest().authenticated());
http.httpBasic(Customizer.withDefaults());
return http.build();
}
}我们讲解一下上面这个配置文件
- 针对/hello接口，直接放行
- 针对/api/**, /login，/default-ui.css接口，我们直接走表单登录，注意/default-ui.css这个文件表单登录页面用到
- 其他的接口，我们直接走HttpBasic校验
在application.yml配置用户名为user，密码为password。启动项目，验证上面几个功能。

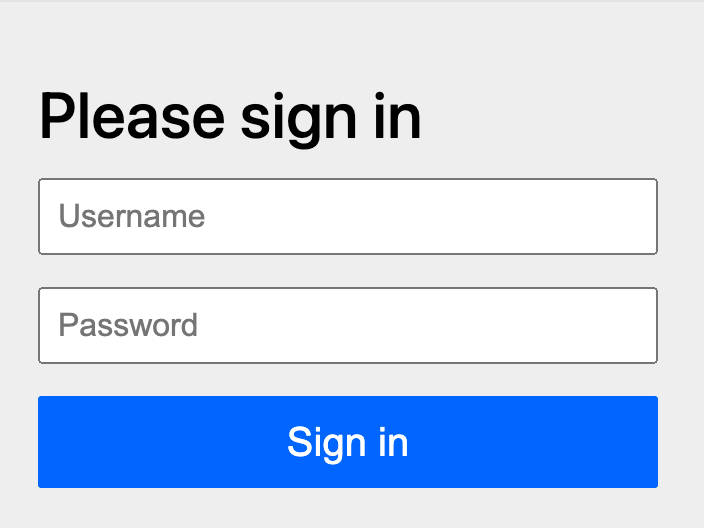

访问/api/hello接口，跳转表单登录页面，输入帐号密码，返回hello api spring security字符串
访问/hello接口，直接返回hello spring security

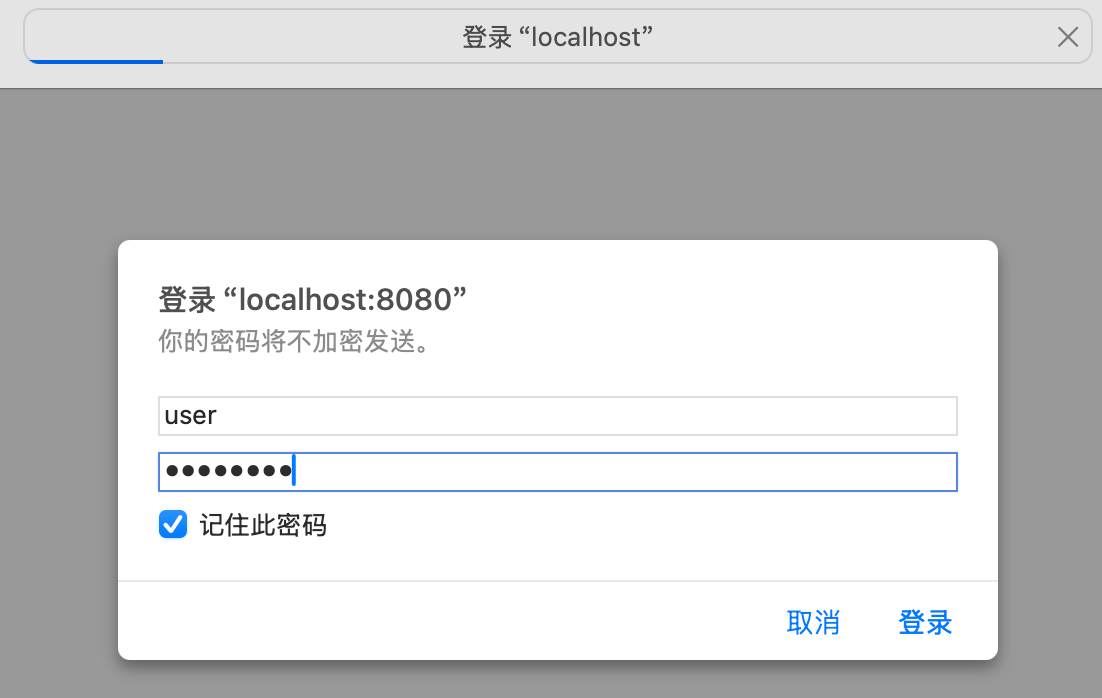

访问/basic接口，跳出HttpBasic校验弹窗，输入帐号密码，返回hello basic spring security字符串
详细代码，点击此处
调试指南
如果大家在使用Spring Security过程中遇到问题，实在不知道怎么排查，可以直接从FilterChainProxy开始排查，因为所有的请求都要通过FilterChainProxy#DoFilter。那接下来我们研究一下这块流程吧。
public class FilterChainProxy extends GenericFilterBean {
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
boolean clearContext = request.getAttribute(FILTER_APPLIED) == null;
if (!clearContext) {
doFilterInternal(request, response, chain);
return;
}
try {
request.setAttribute(FILTER_APPLIED, Boolean.TRUE);
doFilterInternal(request, response, chain);
}
...
}
private void doFilterInternal(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
FirewalledRequest firewallRequest = this.firewall.getFirewalledRequest((HttpServletRequest) request);
HttpServletResponse firewallResponse = this.firewall.getFirewalledResponse((HttpServletResponse) response);
// 从所有的SecurityFilterChains找到对应的SecurityFilterChain
List<Filter> filters = getFilters(firewallRequest);
...
this.filterChainDecorator.decorate(reset, filters).doFilter(firewallRequest, firewallResponse);
}
}可以看到doFilter中调用doFilterInternal，先找到对应需要处理的SecurityFilterChain，然后调用this.filterChainDecorator.decorate(reset, filters).doFilter(firewallRequest, firewallResponse)进行处理。
我们先来看看getFilters的流程吧，代码如下所示
public class FilterChainProxy extends GenericFilterBean {
private List<Filter> getFilters(HttpServletRequest request) {
int count = 0;
for (SecurityFilterChain chain : this.filterChains) {
// 判断是否符合
if (chain.matches(request)) {
return chain.getFilters();
}
}
return null;
}
}可以看到是调用chain.matches(request)方法进行判断的，这里我们回看SecurityFilterChain接口代码, 就很清楚了。
public interface SecurityFilterChain {
// 请求的request是否可以用该过滤器
boolean matches(HttpServletRequest request);
// 获取该过滤器链中所有的过滤器
List<Filter> getFilters();
}查看matches的具体实现
public final class DefaultSecurityFilterChain implements SecurityFilterChain, BeanNameAware, BeanFactoryAware {
@Override
public boolean matches(HttpServletRequest request) {
return this.requestMatcher.matches(request);
}
}this.requestMatcher就是上面表单认证中的http.securityMatcher("/api/**", "/login", "/default-ui.css")生成的校验规则，这里不细讲了。
我们再看this.filterChainDecorator.decorate(reset, filters).doFilter(firewallRequest, firewallResponse)，这里其实就是将过滤器链里面的Fitlers利用装饰器封装一下，最终生成的是VirtualFilterChain，然后执行VirtualFilterChain的DoFilter方法。查看该方法
public class FilterChainProxy extends GenericFilterBean {
private static final class VirtualFilterChain implements FilterChain {
@Override
public void doFilter(ServletRequest request, ServletResponse response) throws IOException, ServletException {
if (this.currentPosition == this.size) {
this.originalChain.doFilter(request, response);
return;
}
this.currentPosition++;
Filter nextFilter = this.additionalFilters.get(this.currentPosition - 1);
if (logger.isTraceEnabled()) {
String name = nextFilter.getClass().getSimpleName();
logger.trace(LogMessage.format("Invoking %s (%d/%d)", name, this.currentPosition, this.size));
}
nextFilter.doFilter(request, response, this);
}
}
}VirtualFilterChain是FilterChainProxy的一个内部类。
如果遇到问题，可以从FilterChainProxy的DoFilter和VirtualFilterChain的DoFilter方法入手。
好了，关于Spring Security的架构设计和初始化流程就介绍到这里了。下一个章节我们开始讲解HttpSecurity是怎么构建出来架构图里面的每一条过滤器的。
